Voltage Controlled Envelope Generator
The Z4000 is a snappy voltage-controlled analog envelope generator with a built-in CV processor for scaling, inverting, and voltage-controlled deviating of the envelope shape. The Z4000 generates an envelope made of the four classic segments: Attack, Decay, Sustain and Release, in which each segment can be manually set using knobs or dynamically set under voltage control.
Control knobs for the Attack, Decay, and Release segments are scaled. The first 0-50% of the knobs rotation is dedicated to high resolution adjustment in the millisecond range.
The output levels are fully adjustable with signals that can reach up to 10V in either polarity and can be mirrored into the opposite polarity or clipped using the voltage-controlled deviater-scaler. A bi-color LED indicates intermediate values in both polarities and their crossfade state.
The Attack slope switch allows selection of a logarithmic or exponential curve for the Attack segment. This subtle effect helps further the fine adjustment of the Attack segment slope. A Shoot button is provided to let you fire the envelope manually. The Z4000 also provides a retrigger input allowing you to create legato notes when using a classic keyboard interface.
Going down to nuts and bolts, the Z4000’s smoothness and snappiness is made possible by a four-segment active-charge discrete circuit which is an extended version of circuits found in classic two-segment rise / fall transient generators.
This Module is currently available.$160 Price in € submitted Oct 13th 2012, 09:58 by Tiptop | last Change Jun 3rd 2018, 17:03 by Tiptop

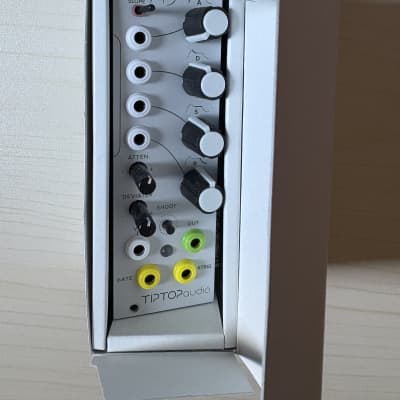

|EU||The overall condition of this *Tiptop Audio Z4000 VC-EG* is *like new*. ...||€120,00||enn_n||View|
|EU||Very good used condition. 15eur for shipping from Denmark to EU.||€100,00||pufik||View|
|USA||Used TipTop Audio Z4000 in excellent condition. It's a pretty snappy EG ...||$125.00||View|
|EU||Very slight rash. 100 % working.I will include a ribbon cable and two M3...||$130.07||View|
|EU||good condition. pickup in Berlin is possible, or shipping in Europe +...||€100,00||rogersentry||View|
|EU||The overall condition of this *Tiptop Audio Z4000 VC-EG* is *good* | ...||€100,00||talkboxert||View|
