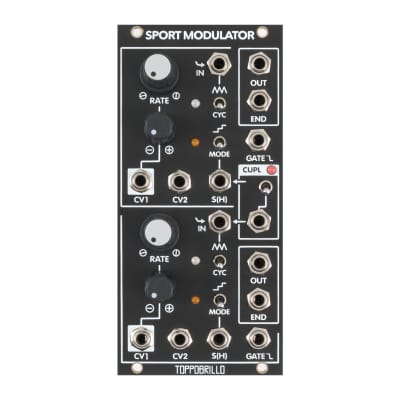

Dual Lag and Hold Device

Each section can be either:

a VC lag that can be made to hold-state on command. also can be put into cycle mode as well, giving a wide-range VC linear triangle LFO that
ranges from around 700 Hz to 30 seconds or so per cycle. with external CV this range is extended from around 1500Hz to ???

and/or:

a sample and hold with controllable input slew (or sample correlation). the control input is the same (s/h in the drawing). The droop in either mode is extremely low- less than 500uV/S.

when cycle is selected in Hold mode, the section will generate complex staircase waveforms that are synced to input pulses.. the input signal doesn't have to be a pulse, but just about any rising slope, this was done to allow for even more inter-compatibility between the 2 sections.

finally, the unlabeled jack in the middle is a gate output that compares the top sections output with the bottom.

  • module width is 12HP
  • behind-panel depth of unit is less than 1 1/2
  • current consumption is 30mA

from: http://www.toppobrillo.com/sportmodulator2.html

  • 30 mA +12V
  • 30 mA -12V
  • 0 mA 5V
  • 36 mm deep
  • Ø 4.38 (24 Votes) Average Rating

No info about availability.

$275 submitted Oct 13th 2012, 00:35 by | last Change Jun 15th, 05:20 by Footkerchief
