16 HP
27 mm deep
Current Draw
0 mA +12V
10 mA -12V
0 mA 5V
$409 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

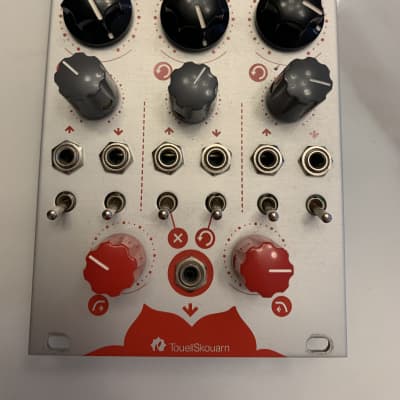

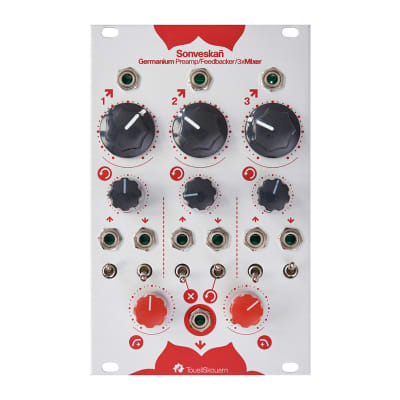

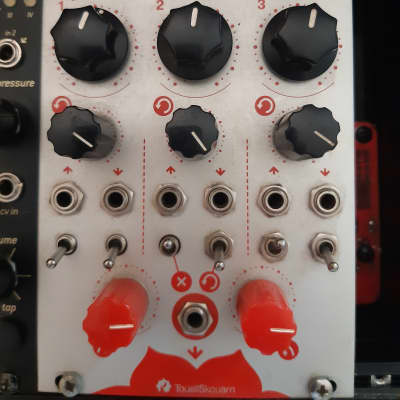

Germanium Preamp Feedbacker Mixer

Sonveskan is a three-channel mixer, which was built using discrete components like germanium transistors. Each audio path comes equipped with a dual gain stage, voltage controlled feedback, a mute switch and a direct output. By combining several channel strips, it is possible to create very wild effects. The mixer’s main channel features an equalizer with two bands and another gain stage delivering more distortion. – A great module for people who like it rough!

The model of 2017 is equipped with bigger coupling capacitors than the predecessor. – The result: More bass!

  • 3 Discrete Preamps
  • 3 Channels Mixer
  • 3 CV Controlled FeedBacks
  • EQ High/Low
  • Direct Out / Mute
