Dimensions
8 HP
38 mm deep
Current Draw
55 mA +12V
10 mA -12V
0 mA 5V
Price
$160 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

8 step sequencer

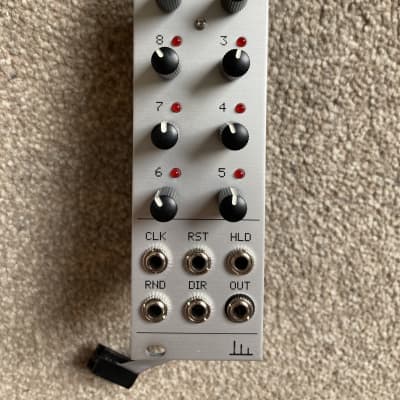

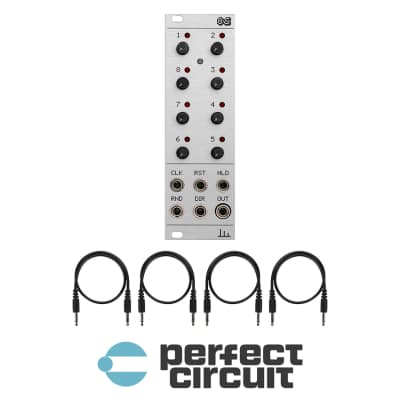

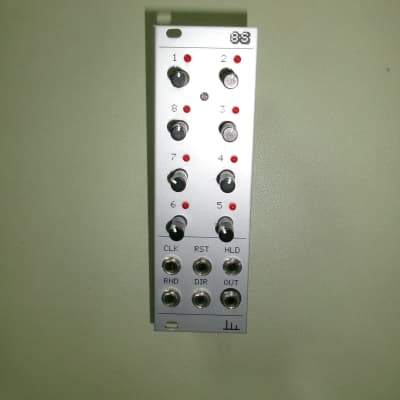

The 8S is an 8 step sequencer in 8 HP with control over parameters of the sequence as reset, hold, random step and direction. It’s been designed to work with clock related signals like triggers or gates but any type of CV signals can be used at its inputs. The output signal path is completely analog and its range can be set as unipolar (0 to +5 volts) or bipolar (-5 to +5 volts) via jumper on the back.

  • Module available here.
  • Follow us here.

http://transientmodules.com/8s


Ø 4.32 (19 Votes) Average Rating
submitted Feb 4th 2017, 19:53 by Transient_Modules | last Change Sep 28th 2017, 22:39 by Transient_Modules

10 Users are observing this
