18 HP
30 mm deep
Current Draw
85 mA +12V
83 mA -12V
0 mA 5V
$559 Price in €

This Module is currently available.

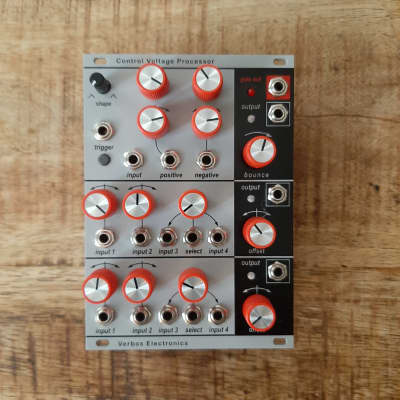

CV processor

The Control Voltage Processor from Verbos Electronics GmbH is a suite of control voltage processing possibilities divided into 3 sections in a slim 18HP package. The lower 2 sections are DC coupled mixers that allow mixing, inverting, offsetting, scaling, multiplying, dividing, crossfading or a combination of these functions. The top section is a voltage controlled slewing processor with independent control of Positive and Negative slew rate, with some unique tricks. The Positive and Negative slew, or Rise and Fall rates if you like, have reversing attenuators. The slopes can be blended from linear to RC curves (starting all slides fast and ending slow, like a proper “East Coast” Portamento) without a change in speed. It can be triggered like a AD envelope and has a Gate out that goes high when the CV out is below 100mV. Of course it can loop by patching the Gate out to the Trigger in. The Bounce control adds a unique flare of overshoot to CV changes, a bit like the effect of stopping a tape reel from turning and then letting it go. The combination of multiple voltage processors offers the user the functions of analog computer.


submitted Jan 24th 2019, 23:54 by mirages | last Change Mar 5th 2019, 18:06 by Triglav

22 Users are observing this
