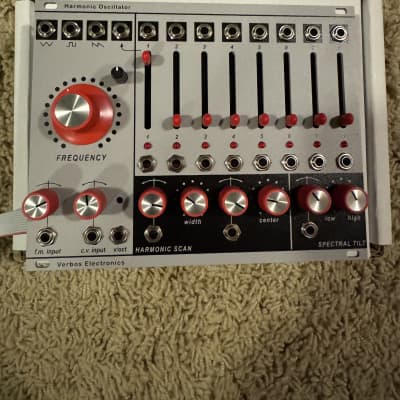

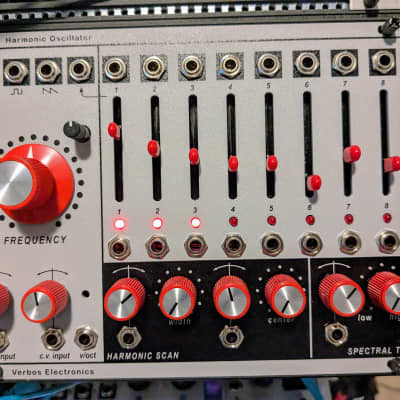

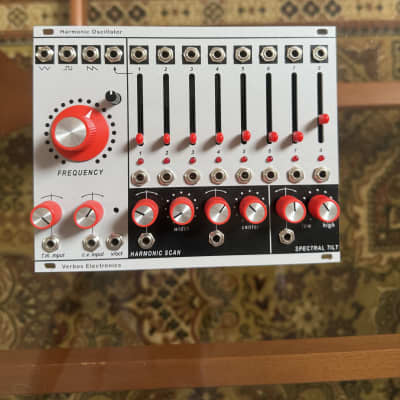

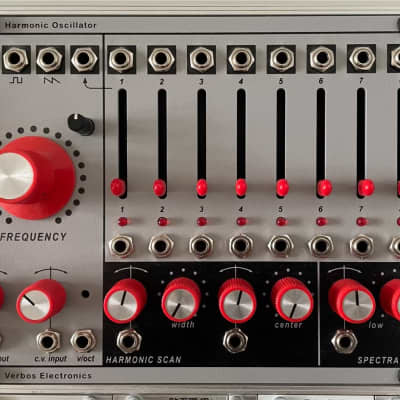

Harmonic Oscillator

Verbos Harmonic Oscillator

For the first time in Eurorack, this oscillator module provides outputs for the first 8 harmonics as sine waves. Also included are triangle, saw, square waves. A voltage controlled mixer with various methods of address allows the user to scan, tilt and mix the harmonics from both panel and external voltage control.

It is built on a discrete, all analog triangle core with an old school discrete transistor exponential converter. It has inputs for linear and exponential FM, the exponential with a reversing attenuator. Of course there's a 1 volt/octave trimmed CV input as well.

  • 120 mA +12V
  • 90 mA -12V
  • 0 mA 5V
  • 26 mm deep
  • Ø 4.64 (50 Votes) Average Rating

This Module is currently available.

$709 Price in €
32 HP Oscillator
submitted Jan 17th 2014, 17:50 by qu0ne | last Change Oct 9th, 05:38 by bassnode
