Stereo LPF

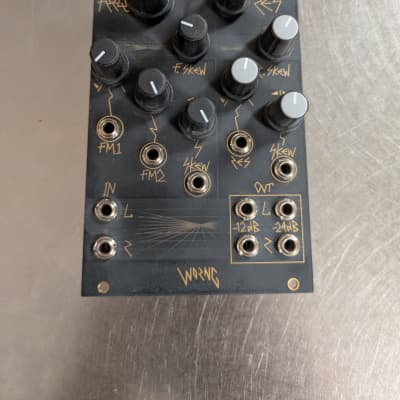

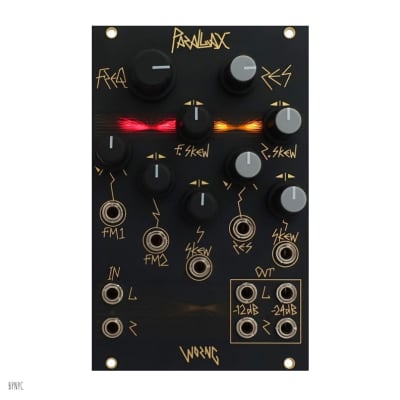

Parallax is a LPF based on the design of a favourite monosynth of the 80s, the Sequential Pro One, but greatly expanded. It has -12dB/oct as well as -24dB/oct outputs, and stereo inputs and outputs. It can be used mono/stereo by patching a mono source to the left input, which allows the same signal to be filtered individually by the left and right signal paths.

There are controls for stereo Frequency and Resonance, with two CV inputs (one with an attenuator and one with an attenuverter) for Frequency and a CV input with attenuator for Resonance. There is also a Skew control for both Frequency and Resonance, which when turned to the left increases the left amount and decreases the right, and vice versa. There are CV inputs with attenuverters for both Frequency Skew and Resonance Skew. The level of both controls is indicated by LED illumination through the panel, so the user can see the total effect of the combined control and CV inputs in stereo. Parallax will self-oscillate at high levels of resonance in a controlled manner.

https://www.worngelectronics.com/

  • 70 mA +12V
  • 70 mA -12V
  • 0 mA 5V
  • 20 mm deep
