This Pedal is currently available.

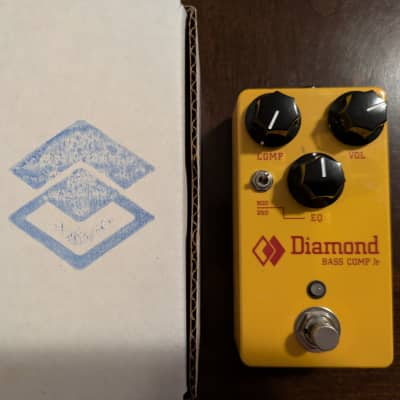

Optical Bass Compressor
Following in the footsteps of the original, the new Bass Comp Jr offers the same high quality optical compression and a simple but effective ‘Tilt style’ EQ control with selectable center frequency (900Hz or 250Hz), an extended frequency response and high headroom to suit a wide variety of passive or active 4/5/6 string basses. All in a smaller, more pedalboard friendly package that is compatible with a wider range of pedalboard power supplies.
The Diamond Bass Comp Jr is designed to be powered from either a 9V battery (included), standard 9V negative tip DC power adapter or from a multi pedal power supply. However, for maximum headroom and tone, we recommend using a negative tip, 18V power supply. Current draw of the Bass Comp Jr is very low- only 20mA.
Note that the Comp Jr is the opposite polarity of the original Bass Comp- power supplies are not interchangeable between the two units.
– Selectable 250Hz or 900Hz EQ tilt point
– Optimized gain staging and use of ultra low noise transistors and op-amps in the signal path for lowest possible noise and extended signal headroom
– Premium audio components, including Elna electrolytic capacitors, 2% film capacitors and 1% metal film resistors
– Bi-color LED provides visual indication of depth of compression
– True Bypass operation
