Dimensions
175 mm wide
135 mm high
Current Draw
500 mA / 12 V DC / Positive Center
Price
$350 Price in €

This Pedal is currently available.

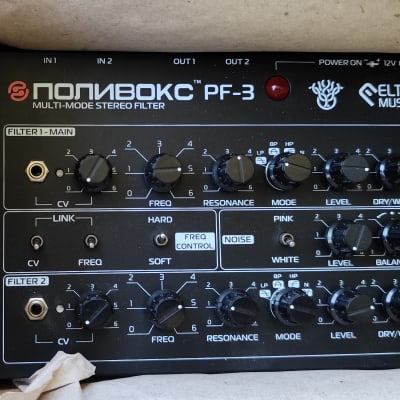

Stereo Desktop Filter

POLYVOX PF3 double-stereo filter utilizes the classic Soviet filter chip for a unique and iconic filter tone. Two independent 12dB multi-mode filters that can be controlled by a single cutoff knob. Turning the filter into a 24dB filter, when connected in series. When connected in stereo, you can achieve interesting effects by using different modes to each channel. A noise generator is on board pre-filter and can be used separately as a source of white and pink noise. Volume as well as clean and processed signal balance per channel. Can be used as two independent filters or stereo mode.

WARNING! Before using the device, turn it on for 5-7 minutes and let it stand. The control transistor should warm up. So that in SOFT mode there is no feedback when the FREQ knobs are in zero position. If you overdo it. The UD1208 chips used in the filter are very sensitive and are never the same. Therefore you will not mathematically get two identical filters. Which is an advantage when using the unit in stereo.

FILTER modes - Lowpass, Bandpass, Hi-pass, Notch.

NOISE generator - pink, white and channel balancing.

FILTER 1 and FILTER 2 - CV controls.

LINK switches to control two filters and CV at the same time with one slice knob.

SOFT/HARD cutoff control

Technical specifications:

Input audio signal level: Max 1.5 V

Modulation CV input: - 5 to +5 V or 0 to + 10V

Power supply: universal mains adapter 100-220V / 12V 1A out

Filter weight: 0,7kg

Packed weight: 1 kg

Dimensions: 175x135x50mm

https://www.eltamusic.com/polyvox-pf3
