Dimensions
60 mm wide
112 mm high
Current Draw
40 mA / 9 V DC / Negative Center
Price
$225 Price in €

This Pedal is currently available.

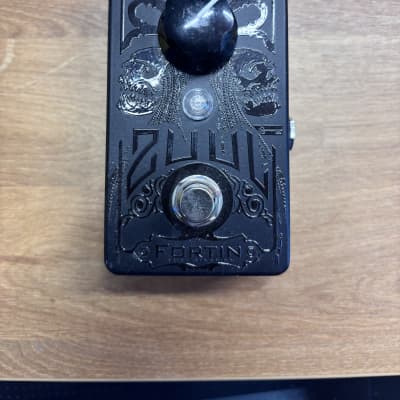

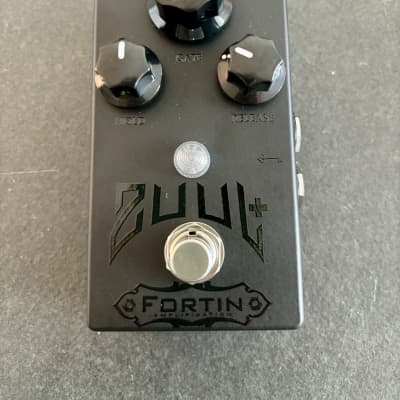

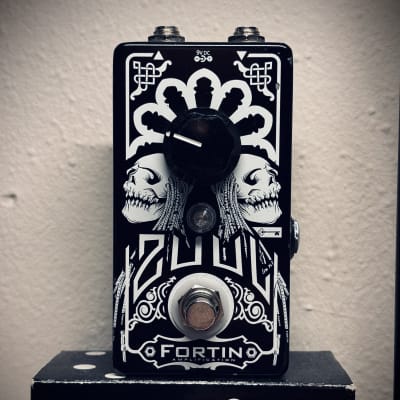

Noise Gate

The ZUUL’s threshold knob also controls the dynamics of the gate circuit. Perfect for guitar, bass or any signal source as it has studio quality specifications. Use in front of an amplifier or in a series effects loop. Dual colour LED for visual feedback gating action: Green = Open, Orange = Closed, Off = Bypass. The KEY input signal can be directly from your guitar (ex. split from the tuner) or other signal source which lets you go from clean to high gain without changing the Threshold knob. This powerful feature lets you control the gate with a different signal than what flows through the input/output jacks of the ZUUL. Side switch or internal jumper to change the threshold range if you are injecting a large signal into the input and not using the key input. Industry standard true bypass switching. Proudly made in North America.
Shipping Dimensions (W/D/H): 15.2cm X 10.2cm X 7.6cm
Shipping Weight: 360g
Dynamic Range: 120dB
THD: 0.025%
Power: Internal battery (not included): 9VDC/40mA (NOTE: Power hungry pedal, recommend using external power)
Adapter: 9VDC, Center Pin Negative (Fully Regulated)

https://www.fortinamps.com/product/zuul/
