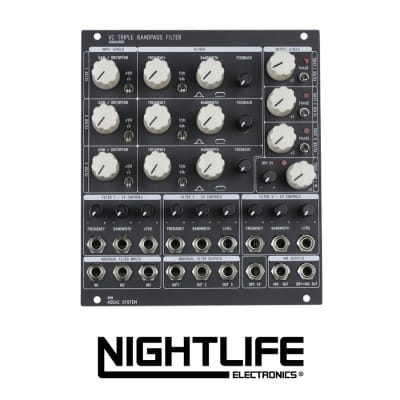

VC Triple Bandpass Filter
At ADDAC we’ve been in love with Bandpass Filters for a long time! We use them in several different ways but mostly as dynamic equalizers at the end of an audio chain for ever-changing timbral qualities with slow modulations on frequency and volume. Slightly or drastically changing the character of the incoming sound just by controlling a few parameters and adjusting the modulation speed. And while this method is a personal preference of ours while developing such module we soon realized that some features would give it other aural qualities and so we started by adding a dedicated feedback control so that each filter could self-oscillate while making this control independent from the Bandwidth control. Also added an amplifier x3 or x100 at each of the inputs in order to create soft or hard distortions turning it into a controllable 3 band distortion!
3 independent Bandpass filters each with:
Input gain up to x3 or x100 via a switch
VC Frequency with attenuverter
VC Bandwidth with attenuverter
6 or 12db (1 or 2 poles) Switch
Individual output VC Amplifier with attenuverter
Phase output switch
3 bands summing mix plus Dry control with attenuverter
Inputs are Normalled: 1->2->3 allowing for the three bandpass filters to be used either for the same input source or from three independent sources.
Filters and VCA’s developed with the modern version of SSM2164 from CoolAudio for pristine sound quality.

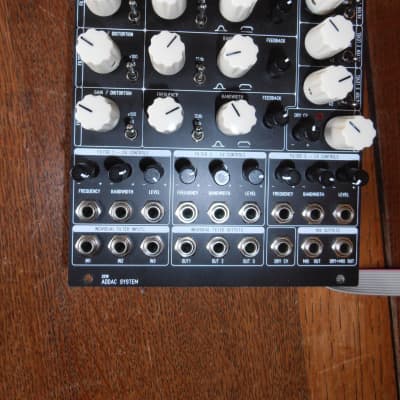

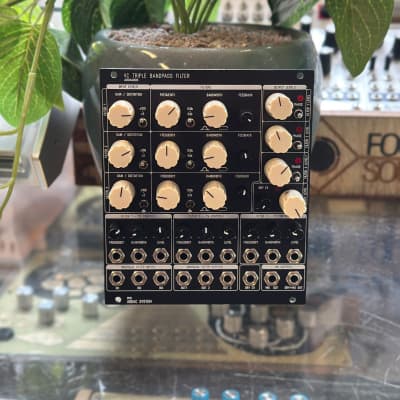

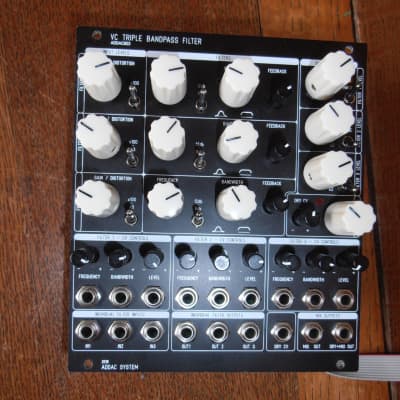

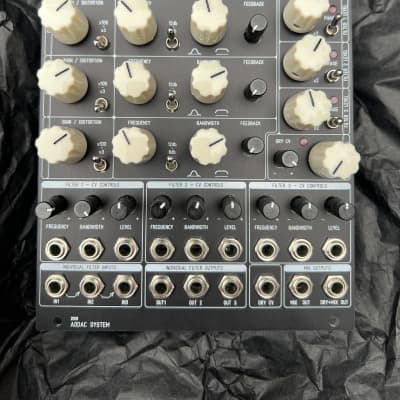

|EU||The overall condition of this *ADDAC System ADDAC603* is *like new*. ...||€335,00||menagerie|
|EU||The overall condition of this *ADDAC System ADDAC603* is *like new* #...||€300,00||Gemuesepfanne|
