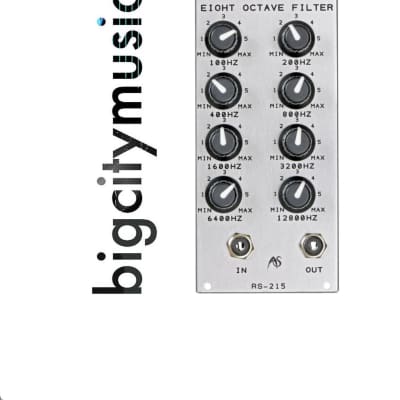

Eight Octave Filterbank

Filterbank module with eight fixed filter frequencies, each one octave apart. It is the successor of the RS-210 which was based on a rare 70s filter bank from EMS. The newer version has different frequencies for a wider frequency range and the filters have a higher slope.

Filter bank with fixed frequencies of 100Hz, 200Hz, 400Hz, 800Hz, 1.6kHz, 3.2kHz, 6.4kHz and 12.8kHz

Each frequency has a dedicated control attenuating the according filter band. If only one control is turned all the way down, the frequency band will be attenuated -9dB. If all filters are closed then the attenuation is infinite. At maximum position of the control the frequency band´s level is almost unity gain.

https://www.analoguesystems.co.uk/index.php/as-modules/rs215

  • 20 mA +12V
  • ? mA -12V
  • 0 mA 5V
  • 80 mm deep

This Module is currently available.

$243 Price in €
12 HP Filter
submitted Jan 26th 2013, 20:17 by Jaaky | last Change Tuesday May 26, 13:09 by motorhead412
