VC LFO

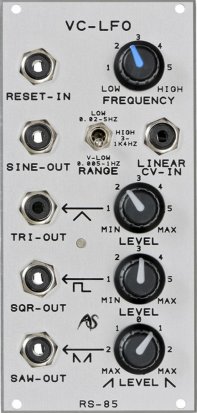

The Analogue systems RS-85 module is a voltage controlled LFO with four wave form outputs, reset and a very wide frequency range, up to audio frequencies so you can use the module as an auxilliary oscillator.

The LFO frequency is set with a potentiometer and/or a control voltage and is visualized by a LED. Three freqeuncy ranges are selectable:

very low: 0,005Hz - 1Hz
low: 0.02Hz - 5Hz
high: 3Hz - 1.4.kHz

four wave form outputs:

sine (±5V)
triangle (mit Pegelregler, ±5V)
square (mit Pegelregler, ±5V)
sawtootch (Bi-directional level control with center detent. Counterclockwise you set the level of a rising sawtooth, clockwise the level of the falling sawtooth)

The RS-85 has a reset socket for restarting the LFO.

http://www.analoguesystems.com/

  • 25 mA +12V
  • 25 mA -12V
  • 0 mA 5V
  • 67 mm deep

This Module is currently available.

$245 Price in €
12 HP LFO
