Dimensions
5 HP
35 mm deep
Current Draw
30 mA +12V
20 mA -12V
? mA 5V
Price
$124 Price in €

Available as an assembled Module and as a DIY project.

No info about availability.

Specs are approved by the manufacturer

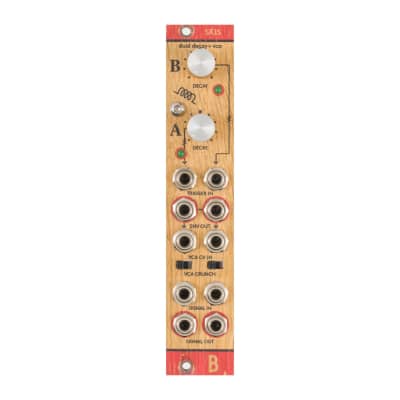

dual decay + vca

In the front of every ski there is a curve similar to the decay envelope. Skis module has two channels A and B and each of them consists of a decay envelope with knob control and a VCA. There is a TRIGGER input to trigger the envelope, a buffered envelope output which is normalised to the CV input of the VCA. Than there is SIGNAL IN and OUT of the VCA.

There is also a CRUNCH switch which activates a special mosfet lofi VCA circuit inspired by designs of Standa Filip. This adds a slight crunchy character which is changing with the decay of the envelope.

A typical application of Skis is to take two signals (noises for example) and generate drum sounds with adjustable DECAY from them with a TRIGGER signal. However you can also use the two VCAs and two DECAY envelopes independently.

Features

dual decay envelope with adjustable decay time (trigger input, CV output)
dual vca (signal IN, signal OUT, CV IN is normalized to CV output of decay envelope)
crunch feature inspired by circuits of Standa Filip
jumpers for changing the decay envelope to release envelope (vca is on full while there is a gate signal and than it decays)
jumpers for enabling the decay knob to completely mute the decay envelope
jumpers for selecting weird filtering of the output signal (also inspired by Standa Filip)
front panel from oak wood, handmade custom knobs
handmade in Brno, Czech republic


Ø 4.50 (22 Votes) Average Rating
submitted Mar 16th 2015, 10:46 by Bastl-Instruments | last Change Oct 13th 2015, 12:23 by Bastl-Instruments

9 Users are observing this
