Instrument Interface

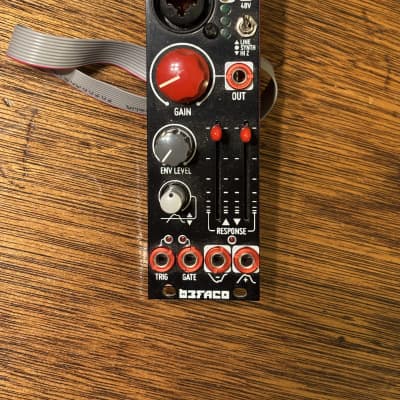

Instrument / signal processor Module. Black panel.

Signal processor to extract envelope, trigger and gate from almost any source. Features a band pass filter to select frequencies that will feed the envelope/gate/trigger extractors.

Suitable to process musical sources,extracting information from a selected frequencies bandwidth.

Preamp allows to get either line inputs or CV levels. Then filtering stage will select the bandwidth that will feed envelope and Gate/Trigger sections.
Outputs featured: filtered out, envelope follower, envelope re-generator and and Gate and trigger extractor .

Features:

Preamplifier.
Bandpass filter with bandwidth and frequency controls.

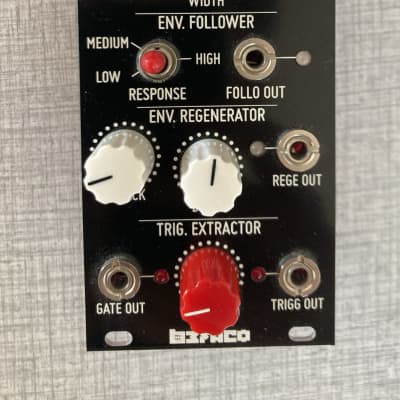

Envelope follower (with response selector) and envelope re-generator ( with attack and decay controls) outputs.
Gate and trigger extractor (With threshold selector) threshold.

http://www.befaco.org/en/instrument-interface/

  • 45 mA +12V
  • 30 mA -12V
  • 0 mA 5V
  • 47 mm deep
  • Ø 3.75 (4 Votes) Average Rating

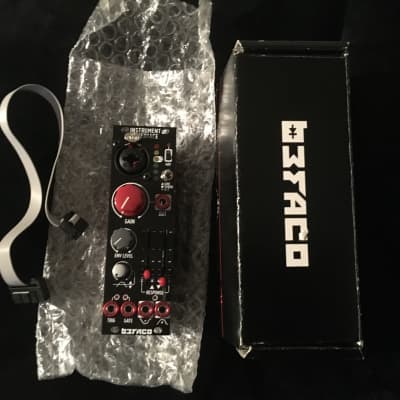

Available as an assembled Module and as a DIY project.

No info about availability.

$202 Price in € submitted Oct 25th 2015, 19:54 by Befacosynth | last Change Dec 5th 2015, 19:11 by Befacosynth
Specs are approved by the manufacturer
