12 HP
26 mm deep
Current Draw
53 mA +12V
50 mA -12V
0 mA 5V
$270 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

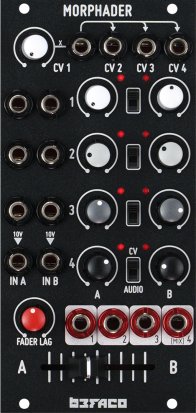

Four channel CV controlled Crossfader

Morphader is a performative tool designed to make multichannel CV/Audio crossfade easy and comfortable. Fading from one quad CV/audio scene to another. The core of the module has four CV controlled crossfaders, each with their individual control and a master fader to control them all. The module mixes the four crossfades at its fourth output, thanks to a clever normalization scheme. Each of them can be easily removed from the mix by plugging a cable at its own output.

Main Features:

  • CV Controlled four channel crossfader.
  • Attenuators per input.
  • Normalized voltages to every input, allowing cv levels morphing.
  • Fader control to crossfade all channels at the same time.
  • Cv or Audio switch per channel to change resposne curve.
  • Leds per channel for signal level monitoring.


Ø 5.00 (4 Votes) Average Rating
submitted Jun 17th 2021, 09:46 by Befacosynth | last Change Jun 17th 2021, 09:47 by Befacosynth
