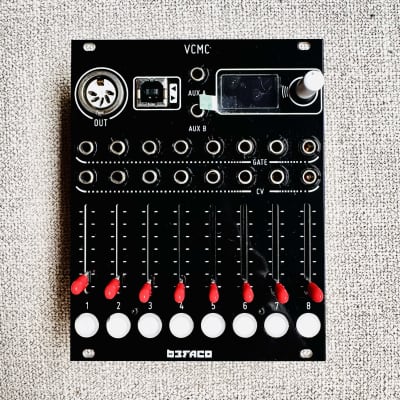

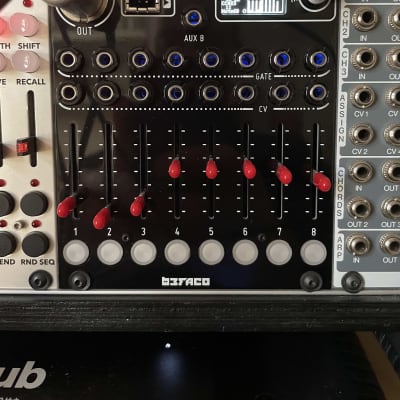

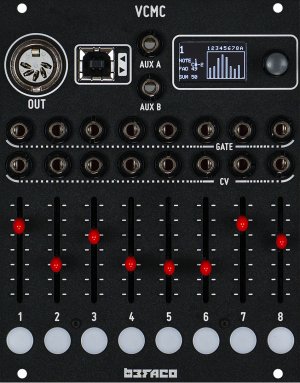

Voltage Controlled MIDI Controller

VCMC is a voltage controlled MIDI controller.

A fully editable MIDI controller with eight faders and push buttons. Each of them with a CV or Gate input associated to automate their functioning via external signals or to be configured independetly for further control.
Each control on VCMC can be edited on its OLED screen and will be output either via DIN-5 or USB as a class compilant MIDI device.

  • 56 mA +12V
  • 12 mA -12V
  • 0 mA 5V
  • 30 mm deep

Available as an assembled Module and as a DIY project.

This Module is a prototype or in a concept phase.

20 HP MIDI
submitted May 2nd, 11:33 by Befacosynth | last Change May 2nd, 11:33 by Befacosynth
Specs are approved by the manufacturer

5 Users are observing this
