Dimensions
10 HP
33 mm deep
Current Draw
145 mA +12V
140 mA -12V
0 mA 5V
Price
$170 Price in €

This Module is a prototype or in a concept phase.

Specs are approved by the manufacturer

Expandable 4-Channel Audio and CV Utility

Coming Very Soon! In Production.

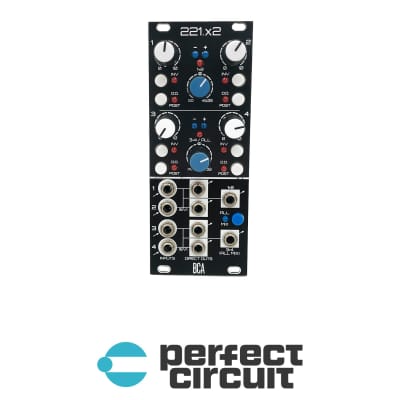

221.x2 is a clean and precise utility module that is equally at home mixing Control Voltage as it is audio. At its simplest, it is two independent 2-to-1 mixers that offer per-channel attenuation and inversion, as well as +6dB of gain available at the summed outputs. With a tap of the “All Mix” button, these separate mixes can be combined into a 4-to-1 mix at the “All Mix” output - meanwhile, the first 1+2 mix is still available at its respective summed output. A rear expansion input and output allows for combining multiple modules into larger systems.

In addition, each channel also offers a Direct Output that can be taken pre or post attenuation/inversion. The CV button switches the channel into CV Mode, which uses precise circuitry for clean handling of CV signals for super tight pitch tracking. Audio Mode adds in AC-coupling at the inputs, in order to block DC-offset from the audio path.

A 6-volt offset is normalled into the input jacks of channels 2 and 4. This voltage is available at the channel’s Direct Output, as well as added to the mixed outputs. Useful as an offset for mixing with another CV signal, or simply as a voltage source.

Each summed output group has two blue LEDs for displaying the shape of the summed CV, and can also serve as signal present indicators for audio. Peak LEDs trigger at ~9.6V, allowing for a bit of headroom before things get out of hand.

Features:

*Clean and precise manipulation, routing and mixing of CV and Audio signals.
*Switchable mixer configurations: two 2-to-1 mixes, or one 2-to-1 plus a 4-to-1.
*Expandable with other 221.x2 modules.
*CV and Audio modes flip between both DC/AC-coupling.
*Direct Outs are switchable between Pre and Post attenuation/inversion.
*Channels 2 and 4 are normalled with a 6V offset.
*∞ to +6 dB (aka 2x) gain on Summing knobs
*LEDs for bipolar peak detection, and display of CV shape.
