BMX 6Channel Stereo Mixer

DIY stereo mixer

Blue lantern modules 6 ch mixer
2 Fx Returns
Stereo Output
Headphones jack out individual output

MODEL: EURO FORMAT, Stereo Mixer
Color: Matt Black

SPECS:

34HP WIDE
DEPTH: 2 inches
Current: TBA
Colors made: Purple, Matt Black

What does this do?

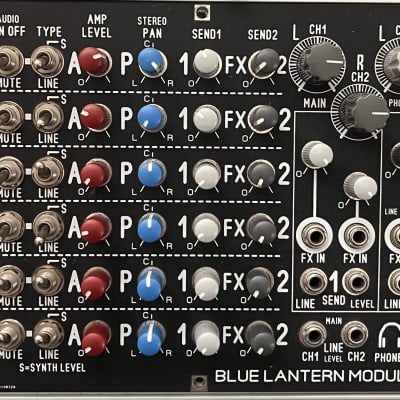

This is a 6 channel mixer. Each channel contains a mute switch, level selector->Line Level or Synth Level, Panning, and two FX sends. There is a head phone amp also. All the opamp's are NE5532 and on IC sockets. So if you use to swap op amps you can.
There is no Voltage control. This is an all analog mixer so that you don't have to lug around your external mixer. You can integrate your FX rack and pedals now and mix it with your Euro Format mixes.
All the outputs are line level. This mixer is meant to be the last in the chain, right before going to your DAW sound card.

  • ? mA +12V
  • ? mA -12V
  • ? mA 5V
  • 51 mm deep
  • Ø 4.00 (3 Votes) Average Rating

Available as an assembled Module and as a DIY project.

No info about availability.

$250 Price in € submitted Feb 3rd 2016, 03:01 by komprezzor | last Change Jun 21st 2016, 03:48 by willbanks
