Voltage Controlled Waveform Processor

Module A-116 provides voltage-controlled dynamic waveform modification of audio signals. It can produce new waveforms from the standard VCO shapes, and modulate these changes in real time. The signal first of all goes through an input amplifier, which can attenuate the signal as well as amplify it by up to a factor of 2.

After the input amplifier, the signal goes through two parallel processors: a clipping circuit, and an asymmetrical amplifier. The processed signals are added together and sent to the output.

Clipping-Level and Symmetry amounts are not just manually controllable, but can also be modulated by control voltages, to produce complex, constantly changing waveforms.

For more detailed information please look at the English user's manual


  • 20 mA +12V
  • 20 mA -12V
  • 0 mA 5V
  • 40 mm deep
  • Ø 3.04 (24 Votes) Average Rating

This Module is currently available.

8 HP Waveshaper
submitted Oct 6th 2012, 13:36 by CitizenKlaus | last Change Sep 29th 2016, 02:02 by acgenerator

Date Region Description Price Seller

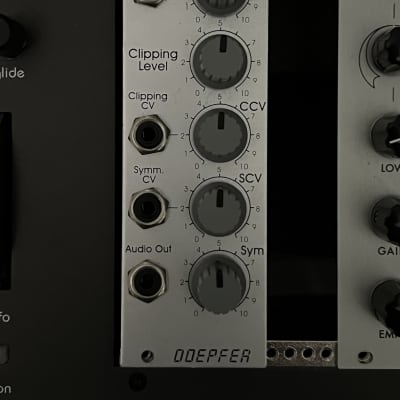

EUThe overall condition of this *Doepfer A-116* is *like new* First owner. ...€50,00Symbiosis View
USAUp for sale is a Doepfer A-116 waveform processor. Great to shift waveforms f...$60.00 View
USA USED in very good condition.Manufacturer Description: Module A-116 provides ...$60.00 View
