Dimensions
8 HP
35 mm deep
Current Draw
10 mA +12V
10 mA -12V
0 mA 5V
Price
$80 Price in €

This Module is currently available.

Mixer (Linear)

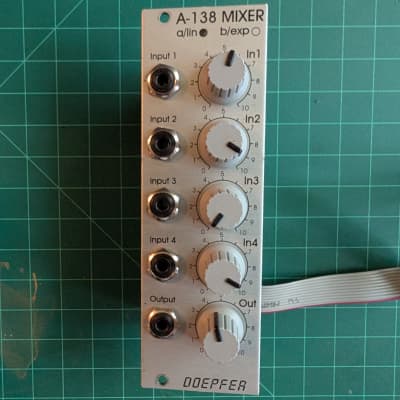

Module A-138 is a four channel mixer, which can be used with either control voltages or audio signals. Each of the four inputs has an attenuator, and there's a master attenuator, so that the mixer can be used at the end of the audio chain - ie. it can be used to interface directly with an external mixer, amplifier, etc.

The module can be supplied in two versions:

A-138 a: potentiometers with linear response, so especially suitable for control voltage mixing.

A-138 b: potentiometers with logarithmic response, so especially suitable for audio signal mixing.

For more detailed information please look at the English user's manual: http://www.doepfer.de/a100man/a138man.pdf

http://www.doepfer.de/a138.htm
