6 HP
30 mm deep
Current Draw
60 mA +12V
15 mA -12V
0 mA 5V
$189 Price in €

This Module is currently available.

Specs are approved by the manufacturer

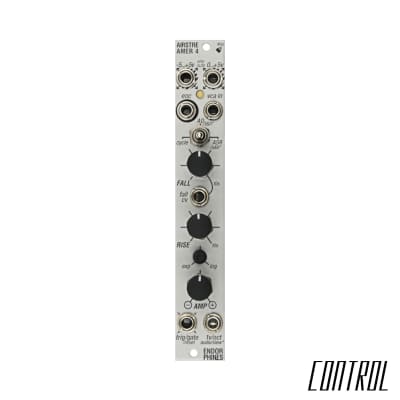

AD / ASR function generator

  • Fast and effective 6hp envelope generator with variable slope curves and three modes: looping, attack-sustain-release (ASR) and attack-decay (AD)
  • CV control over rise (attack) and fall (decay/release) duration
  • continuously variable shape over rise and fall slopes (from expo to linear to log) without stretching the slopes duration in time
  • 224 kHz samplerate, zero aliasing CV generation
  • 1v/oct input, bipolar and unipolar outputs, selectable end of cycle outputs
  • Thru-zero VCA input that inverts the envelope when CV goes to negative voltages
  • Can act as an audio rate oscillator with 1v/oct tracking
  • Slew limiter, S&H, T&H


Ø 3.50 (8 Votes) Average Rating
submitted Apr 16th 2019, 14:18 by Endorphines | last Change Oct 29th 2021, 10:26 by Endorphines
