Dimensions
26 HP
26 mm deep
Current Draw
230 mA +12V
65 mA -12V
0 mA 5V
Price
$679 Price in €

This Module is currently available.

Specs are approved by the manufacturer

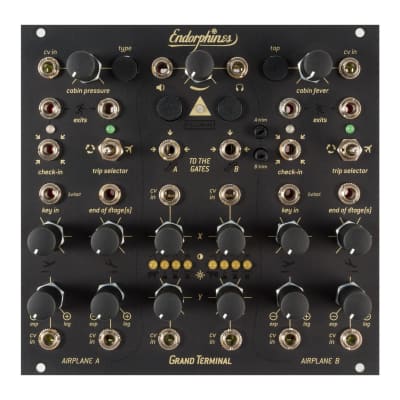

Dual 8 mode filter / vca + Dual voltage controlled AD/AR/looping envelope + 16 algorithm stereo fx

  • 26 HP, 1” in depth – super slim and Shuttle friendly
  • Dual multi-mode filter (ladder, diode, vactrol, state-variable lp/hp/bp and comb) in dual, stereo and serial modes
  • Dual AD/ASR/looping envelope generator that acts as band-limited oscillator when cycling at linear slopes
  • Stereo “Cabin Pressure” processor with different 16 effects: from shimmered halls and reverberations to a spring simulation over tape/ping-pong delays / chorus / distortion / compressor and others.
  • Separate mono modular level output and stereo line level output for direct line recording or driving the headphones.
  • Easy firmware update via Audio.
  • Fully compatible with GatewayT_XP
  • Audio I/O: 48 kHz 16 bit, 32 bits internal processing
