Dimensions
10 HP
35 mm deep
Current Draw
50 mA +12V
39 mA -12V
? mA 5V
Price
$140 Price in €

This Module is currently available.

Specs are approved by the manufacturer

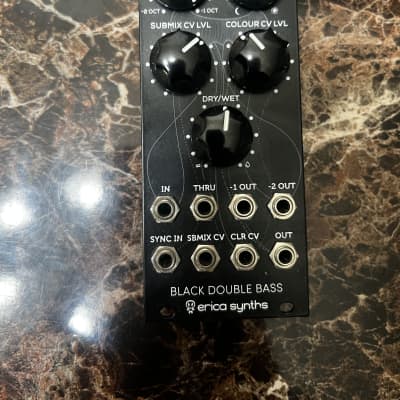

Erica Synths Black Double Bass is unique module that combines two transistor suboscillators (-1 and -2 octaves) and lowpass filter.

Erica Synths Black Double Bass is unique module that combines two transistor suboscillators (-1 and -2 octaves) and lowpass filter. It does not make sound on its own, but it will turn any VCO or beeper into massive bass sound with CV control over octave mix and cutoff frequency. Sync input that resets suboscillators on incoming pulse, provides even more versatility in sound design. The module can be also provide aggressive distortion, when used with percussive sounds like bassdrums.
Features:

*Two transistor based -1 and -2 octaves suboscillators
*Manually and CV controlled fade between suboscillators
*Manually and CV controlled lowpass VCF
*Suboscillator synchronisation input
*Individual outputs of suboscillators
*Limiter on the output to avoid clipping
*Signal Thru output
*CV level attenuators

NB! Double Bass module is not an audio source by itself and needs an audio input!

https://www.ericasynths.lv/shop/eurorack-modules/by-series/black-series/black-double-bass/


Ø 3.67 (3 Votes) Average Rating
submitted Apr 21st 2019, 12:15 by EricaSynths | last Change Apr 24th 2019, 06:13 by EricaSynths

5 Users are observing this
