Dimensions
12 HP
25 mm deep
Current Draw
25 mA +12V
15 mA -12V
? mA 5V
Price
$217 Price in €

No info about availability.

Specs are approved by the manufacturer

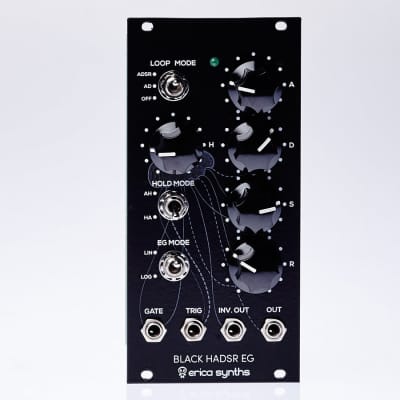

Black HADSR Envelope generator

Feature-rich yet easily operated five stage envelope generator.

The Erica Black HADSR Envelope generator is feature-rich yet easily operated five stage envelope generator. Use it with Black CV Expander to add more versatility.

Features:
● Full ADSR envelope looping
● AR envelope looping
● HADSR & AHDSR modes
● Retrigger envelope at any stage with trigger input
● Adjust each parameter with CV (if used with EG CV Expander)
● Inverted output
● Adjustable hold time before or after attack
● Diode protection on reversed power supply

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

http://www.ericasynths.lv/en/shop/eurorack_modules/6167-black_hadsr_envelope_generator.html


Ø 4.25 (4 Votes) Average Rating
submitted Jul 3rd 2015, 11:14 by EricaSynths | last Change Jul 6th 2015, 09:34 by EricaSynths

4 Users are observing this
