High quality output mixer and stereo panner with balanced outputs and headphone amplifier.

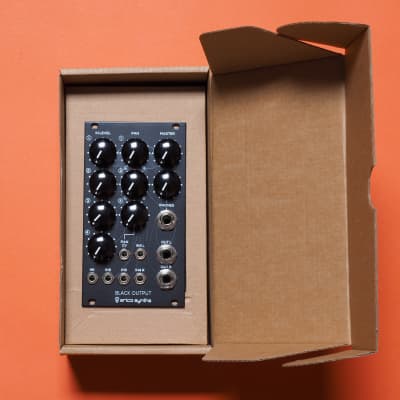

Erica Black Output Module is a high quality output mixer and stereo panner with balanced outputs and headphone amplifier for monitoring your modular masterpieces. All inputs are buffered, we use stereo potentiometers (found in high quality studio mixers) for panning, IN3 has a CV controlled autopan function. You will find 6.3mm jacks for balanced outputs and headphone out with dedicated preamp.

Features:
● 3 separately buffered inputs
● Balanced outputs
● High quality headphone preamp
● Separate volume controls for master out and headphones
● Stereo potentiometers for pan control
● CV controllable pan for IN 3
● Diode protection on reversed power supply

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

http://www.ericasynths.lv/en/shop/eurorack_modules/6076-black_output_module.html

  • 65 mA +12V
  • 45 mA -12V
  • ? mA 5V
  • 30 mm deep

No info about availability.

$285 submitted Jun 22nd 2015, 20:22 by EricaSynths | last Change Jul 4th 2015, 12:09 by EricaSynths
Specs are approved by the manufacturer
