Dimensions
5 HP
25 mm deep
Current Draw
10 mA +12V
5 mA -12V
0 mA 5V
Price
$111 Price in €

This Module is currently available.

Specs are approved by the manufacturer

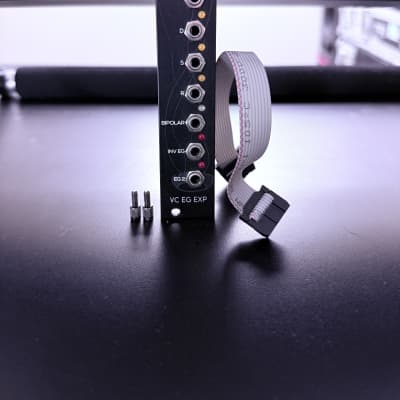

CV/Gate output expander for Black VCEG

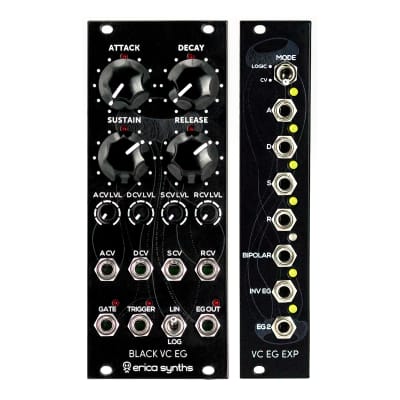

Erica Black VC EG Expander takes the VC EG to the next level – it outputs gates or CVs for each active stage of the envelope, so you can design really advanced patches. Also, inverted and bipolar envelope outputs are available.

NB! This is expander module that can be connected only to the Black VC EG. It will not work as standalone eurorack module.

Features:

◾4 simultaneous logic or CV outputs for each envelope stage
◾Bipolar envelope output (-5V - +5V)
◾Inverted envelope output
◾Duplicated envelope output
◾5HP panel width

http://www.ericasynths.lv/en/shop/eurorack-modules/by-series/black-series/black-vc-eg-expander/


Ø 4.75 (4 Votes) Average Rating
submitted Jan 9th 2017, 15:47 by EricaSynths | last Change Dec 28th 2017, 15:02 by EricaSynths

4 Users are observing this
