Dimensions
12 HP
25 mm deep
Current Draw
40 mA +12V
36 mA -12V
? mA 5V
Price
$246 Price in €

This Module is currently available.

Specs are approved by the manufacturer

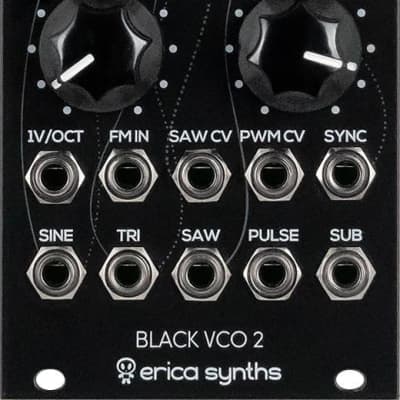

Powerful Analogue VCO

Erica Black VCO is analogue VCO with four simultaneous waveform outputs and one octave down suboscillator. The core of the VCO is borrowed from famous Russian synth Polivoks VCO and in exponential converter we use the original matched transistor IC that was used in Polivoks. Unlike harsh logic divider based suboscillators, Black VCO transistor-based suboscillator generates distinct, rounded squarewave similar as on TB303. Together with Black VCO Expander – waveform mixer you get massive analogue sound source with plenty of patch points for modular use.

http://ericasynths.lv/en/shop/eurorack-modules/by-series/black-series/black-vco/


Ø 5.00 (7 Votes) Average Rating
submitted May 4th 2017, 09:03 by EricaSynths | last Change May 19th 2017, 12:41 by EricaSynths

9 Users are observing this
