Dimensions
12 HP
35 mm deep
Current Draw
71 mA +12V
62 mA -12V
0 mA 5V
Price
$248 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Analogue VCO with built in waveshaper & two LFOs

Features
Simultaneous sine, triangle, saw and pulse wave outputs
-1 octave sub-oscillator
Highly accurate and stable tracking across 8 octaves
Saw waveshaper with manual and CV control
Manually adjustable and CV controlled pulse width
Exponential/Linear FM input with an attenuator
2 built-in modulation LFOs
Synchronization input
Octave switch – 7 octaves
Skiff-friendly design

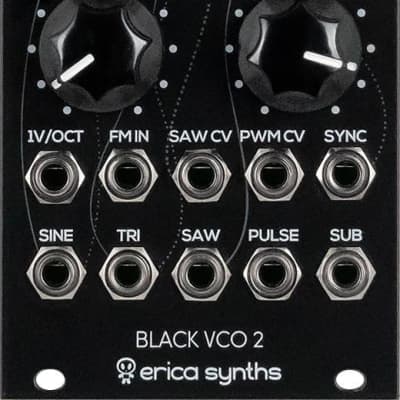

Erica Synths Black VCO2 is all analogue, highly accurate and stable VCO with four simultaneous waveform outputs, one octave down sub-oscillator and some unique features. Unlike harsh, logic divider based sub-oscillators, Black VCO2 transistor-based sub-oscillator generates distinct, rounded square wave. Furthermore, the Black VCO2 has built in SAW waveshaper and two modulation LFOs. Together with Black VCO Expander – waveform mixer you get massive analogue sound source with plenty of patch points for modular use.

https://www.ericasynths.lv/shop/eurorack-modules/by-series/black-series/black-vco2/
