Dimensions
10 HP
25 mm deep
Current Draw
14 mA +12V
15 mA -12V
? mA 5V
Price
$82 Price in €

Module is available as a DIY project only.

This Module is currently available.

Specs are approved by the manufacturer

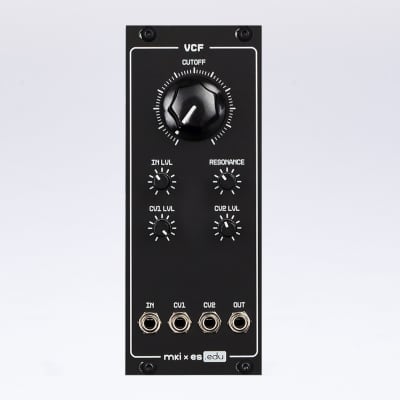

Easy to build eduactional DIY VCF

es x mki.EDU DIY VCF is a resonant low pass diode ladder filter that sticks to super basic and widely available components. On top of that, the architecture is as approachable as possible by avoiding the tricky diff-pair setup classic ladder filters rely on.
It’s arguably the beating heart of any subtractive synth – adding character, dynamics, and a good deal of retro-futuristic oddness to your patches.

https://www.ericasynths.lv/shop/diy-kits-1/edu-diy-vcf/


submitted Oct 21st 2022, 10:18 by EricaSynths | last Change Oct 21st 2022, 10:18 by EricaSynths
