14 HP
42 mm deep
Current Draw
228 mA +12V
55 mA -12V
0 mA 5V
$336 Price in €

This Module is currently available.

Specs are approved by the manufacturer

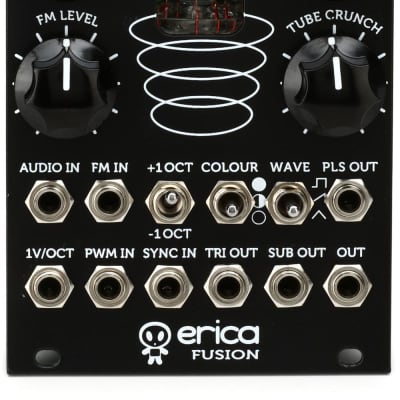

Full analogue sound source with lots of distinct features

.The core of the module is highly stable AS3340-based VCO with three simultaneously available waveforms, transistor-based suboscillator and detune function – two BBD delay lines that make frequency shifter that is mixed back to the principal oscillator in order to emulate two detuned VCOs. Tube crunch – distinct tube overdrive - is added on the top of the mix. Furthermore, Audio input mixes an external audio signal with the principal oscillator which results in crazy sonic experience. Fusion VCO2 is exactly what you need, if you wish to go really low frequencies and have a sound that sets your modular system apart from mass!
Full analogue design
Great tracking over 8 octave range
Detune function for thickening the sound
-1oct transistor based suboscillator
Tube overdrive circuit
External audio input
VCO synchronization
Simultaneous waveform outputs


Ø 5.00 (11 Votes) Average Rating
submitted May 3rd 2019, 17:14 by EricaSynths | last Change May 3rd 2019, 17:19 by EricaSynths

25 Users are observing this
