Dimensions
10 HP
35 mm deep
Current Draw
88 mA +12V
78 mA -12V
0 mA 5V
Price
$222 Price in €

This Module is currently available.

Specs are approved by the manufacturer

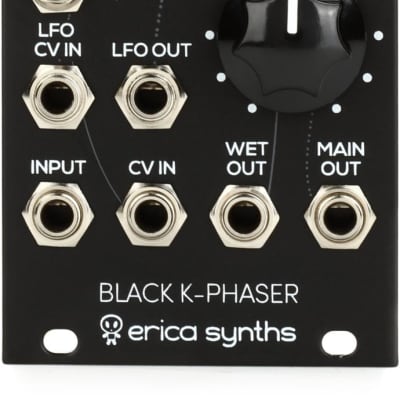

Erica Synths take on a classical, genre defining FX unit – the Krautrock Phaser

K-Phaser retains the original concept of 8 all-pass filters with photoresistors, but the filters and modulation circuit is redesigned and several unique features added. A dip switch allows for selecting the number of filter stages involved in the resonance path, while the resonance attenuverter brings in never-heard-before feedback artefacts, and most importantly – the SPREAD mode detunes the all-pass filters for even more distinct behavior. A built-in voltage controlled LFO with selectable waveforms expands the modulation possibilities of the phaser and can be used as an independent modulation source for your modular system as well.

https://www.ericasynths.lv/shop/eurorack-modules/by-series/black-series/black-k-phaser/


Ø 5.00 (3 Votes) Average Rating
submitted Dec 21st 2021, 20:49 by EricaSynths | last Change Dec 21st 2021, 20:50 by EricaSynths

13 Users are observing this
