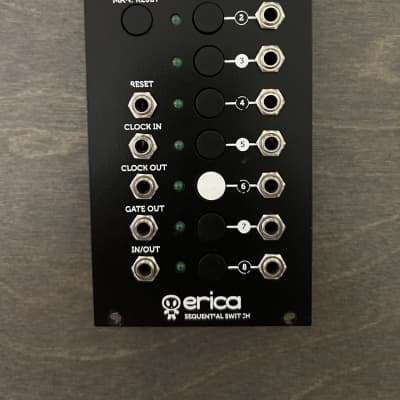

Sequential Switch v2

8 channel SEQUENTIAL SWITCH

Erica Synths 8 channel SEQUENTIAL SWITCH is unique module that allows you to sequence up to eight sound sources in advanced ways or route one sound source sequentially to eight different sound modifiers – VCFs, waveshapers, VCAs, etc. With Sequential Switch CV Expander (sold separately) added you get one of most advanced 8 step sequencers arround. Enjoy!

Erica Synths Sequential Switch (SS) unique control interface allows you to pause, skip and merge steps, set sequence length, but what really sets it apart from other sequential switches is Gate output – when used with ADSR and VCA, you get really powerful sequencer with real time control over each sound source in the sequence. Use Sequential Switch with random clock source and you get a heart of insane random, selfgenerating patches!

NB! Input signal level for SS should not exceed 20Vptp (that is rare occasion in modular synths). Nothing bad will happen, but you will hear some unwanted signal on unused outputs.

Features:

●8 inputs/outputs sequentially routed to one input/output
●Manual Step and Reset
●Gate output (reacts on merged and paused steps)
●8 different play modes
●Piano mode

http://www.ericasynths.lv/en/shop/eurorack-modules/by-series/basic-series/sequential-switch-v2/

  • 50 mA +12V
  • 13 mA -12V
  • 0 mA 5V
  • 20 mm deep

This Module is currently available.

$140 Price in €
10 HP Sequencer
submitted Jun 13th 2017, 11:48 by EricaSynths | last Change Jun 5th 2018, 15:35 by EricaSynths
Specs are approved by the manufacturer
