12 HP
Current Draw
? mA +12V
? mA -12V
? mA 5V
$149 Price in €

This Module is a prototype or in a concept phase.

Custom made model only 10 RARE . 100% recycled white wash wood

custom made model

only 10 RARE . 100% recycled white wash wood

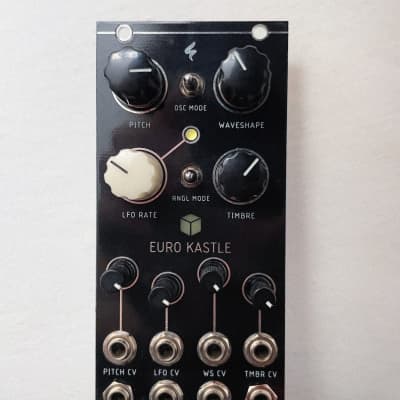

it's a Kastle of Bastl , mono jack in and out ,

more info of Kastle .

Kastle is a unique digital lo-fi sound and it can be melodic as well as very noisy and drone-y, soft or harsh. It is designed to be fun on its own but it is most powerful when combined with other modular gear.

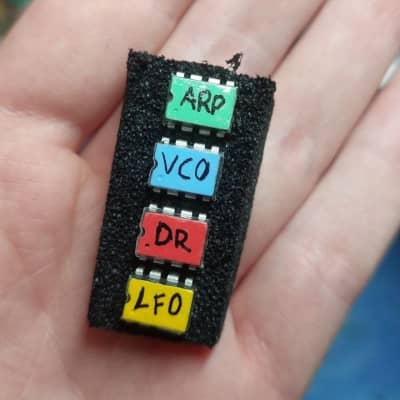

Kastle is an open source DIY project which runs on two Attiny 85 chips that can be reprogrammed with an Arduino (google: “programming Attiny 85 with Arduino”). One chip is dedicated to sound generation while the other handles modulation. Several firmwares for the Attiny chips are available.

The Synth version combines complex oscillator and LFO with stepped waveform generator.

The oscillator section has 3 sound parameters pitch, timbre and waveshape – all under voltage control and with 3 different synthesis modes. It has a main output and a square wave output. Both can be used independently or combined. The 3 synthesis modes are phase distortion, phase modulation (also known as FM) and track & hold modulation. Each mode utilizes two oscillators. The Pitch controls the main oscillator, the Timbre sets the pitch of the modulating oscillator and the waveshape depends on the synthesis mode. The waveshape also controls the pulse width of the square wave output from the main oscillator.

The voltage controllable LFO has a triangle and square output and a reset input. The stepped waveform generator is inspired by the Rungler circuit by Rob Hordijk. It can produce 8 different voltages either in random order or in 8 or 16 step looping patterns depending on how the BIT IN is patched.


Ø 4.00 (4 Votes) Average Rating
submitted May 15th 2017, 10:41 by errorinstruments | last Change Jun 5th 2020, 17:09 by motorhead412
