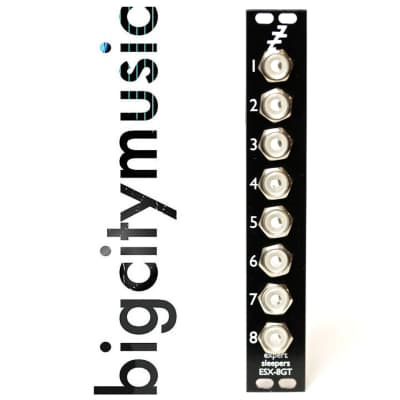

Gate Expander with MIDI outputs for ES-4 and ES-5

The ES-4 Gate Expander is a module which works in tandem with the ES-4 or ES-5 to offer 8 on/off outputs for use as gates, triggers, clocks etc.

Up to five ES-4 Gate Expanders can be attached to one ES-4 - one per ES-4 channel. (The 8 outputs of the Gate Expander reflect the 8 bits of CV information passed to the ES-4's DACs.) Therefore you can combine the modules to create a system with up to 40 independent gate outputs - all driven from a single digital connection.

The ES-4 Controller software (part of Expert Sleepers Silent Way) also allows the Gate Expander outputs to be used for DIN sync or MIDI output* (note - not just MIDI clock output, but as an actual MIDI port, capable of sending any MIDI messages). Since these outputs are driven from an audio connection (the S/PDIF port), they have sample-accurate timing, which no USB MIDI interface can claim.

Note - the MIDI out feature is only officially supported at sample rates of 48kHz and above, though some users report success with specific hardware when running at 44.1kHz. The ESX-8MD mk2 module works for MIDI output at all sample rates.

  • Analogue outputs: 8x 3.5mm jacks, DC-coupled
  • Output voltages: 0V/5V or 0V/12V, selectable via jumper in groups independently for channels 1-4 and 5-8
  • Indicators: LED per channel

http://expert-sleepers.co.uk/esx8gt.html

  • 5 mA +12V
  • 0 mA -12V
  • 0 mA 5V
  • 24 mm deep
