Dimensions
8 HP
48 mm deep
Current Draw
118 mA +12V
48 mA -12V
0 mA 5V
Price
$299 Price in €

This Module is currently available.

MIDI/CV Converter and synchronization center

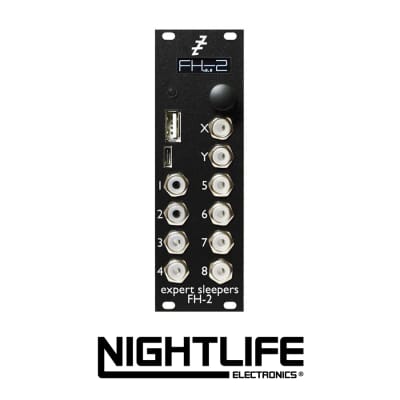

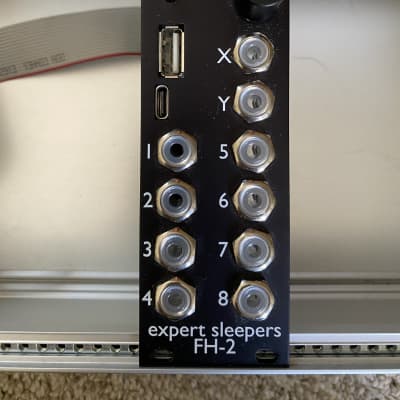

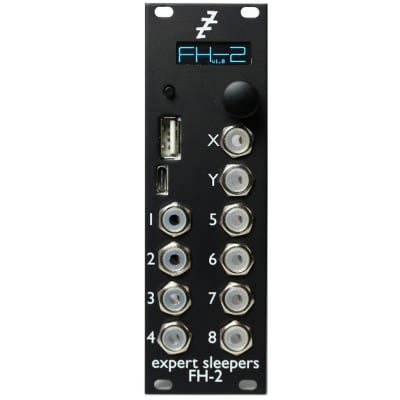

The FH-2 is an 8HP Eurorack module combining the following functions:

  • MIDI to CV conversion including polyphonic and MPE operation.
    • The FH-2 is simultaneously a USB MIDI host, a USB MIDI device, and also supports traditional 5-pin DIN MIDI.
    • Support for drum triggers including triggers with velocity or accents.
    • Support for automatic VCO calibration (similar to that in Silent Way).
  • Clock generation and synchronisation.
    • MIDI clock (in and out), analogue clock (in and out), or internal clock (BPM or tap tempo).
  • LFO generation, including tempo-synced LFOs.
  • Arpeggiators.
  • Euclidean pattern generators.

The FH-2 has 8 high precision CV outputs, expandable to 64 with the FHX-1 Output Expander.

The module can be completely configured via its own UI, but a convenient web-based configuration tool is also available, which communicates with the module directly via MIDI SysEx.

http://expert-sleepers.co.uk/fh2.html


Ø 4.52 (42 Votes) Average Rating
submitted Apr 30th 2018, 08:23 by os | last Change Mar 16th 2023, 21:54 by FG-Modular
