State variable filter with 12 db LP, 12 dB HP, 6 dB BP, and 18 db LP

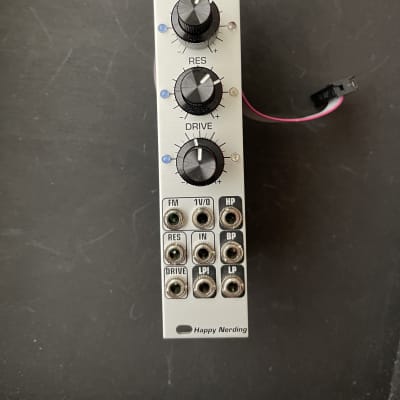

HN VCF is a state variable filter having 12 db Low Pass, 12 dB High Pass, 6 dB Band Pass plus 18 db Low Pass marked as “LP!”, because it has extra drive. All three parameters: “Freq”, “Resonance” and “Drive” have dual knobs with outer knobs controlling bipolar CV amount. These affected CVs are then shown by the relative green/blue leds.

The possibility to have CV over “Resonance” and “Drives” makes it a very capable 6 HP filter.

“LP!” output has 6 dB steeper slope (18 dB) compared to ordinary 12 dB “LP” output. Plus it has much more drive.

http://www.happynerding.com/category/hnvcf/

  • 55 mA +12V
  • 65 mA -12V
  • ? mA 5V
  • Ø 5.00 (1 Votes) Average Rating

This Module is currently available.

$150 submitted Mar 12th, 16:07 by igorrr | last Change Thursday May 25, 14:34 by igorrr
