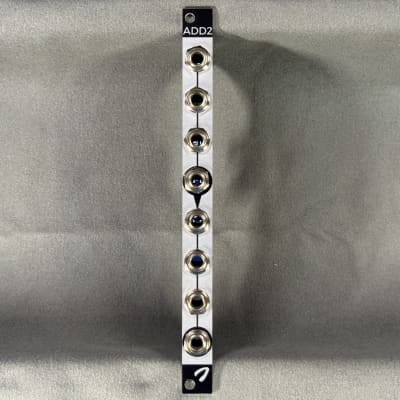

Precision Adder/Averager

To any new modular system owner, the need to easily combine different voltage sources quickly becomes apparent. While a mixer is the obvious solution, these modules are not suitable for adding precise pitch control voltages (CVs) since the channel gains can not be set exactly to unity.

Add 2 provides a compact solution to this problem, precisely summing the input signals down to 1 or 2 outputs. Alternatively, each section can be configured as an averager using the jumpers on the rear. This way, LFO waveforms or audio sources can be combined while maintaining the average signal level and avoiding clipping. The high-end components provide exceptional performance, making Add 2 suitable for audio, control voltages and gates/triggers.

With the bottom section's first input not in use, the top output is injected into the bottom. This allows 5 signals to be combined into 2 outputs, adding flexibility to your patching.

https://joranalogue.com/add-2

  • 20 mA +12V
  • 20 mA -12V
  • 0 mA 5V
  • 40 mm deep

This Module is currently available.

$75 Price in €
2 HP Mixer
submitted Apr 29th, 12:00 by joranalogue | last Change Yesterday, 10:57 by joranalogue
Specs are approved by the manufacturer

1 Users are observing this
