Dimensions
14 HP
21 mm deep
Current Draw
24 mA +12V
10 mA -12V
40 mA 5V
Price
$324 Price in €

This Module is currently available.

Specs are approved by the manufacturer

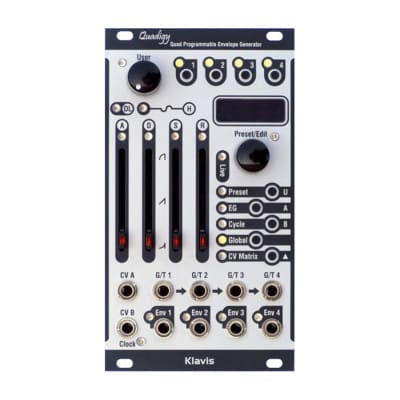

Quad programmable envelope generator

The Quadigy is a complex envelope generator focused on live play.
The goal is to allow the user setting up rich, interactive and dynamically evolving envelopes without the risk of breaking up a subtle and intricate patch once on stage.
This is achieved by offering two main modes, one where full control is available and a Live mode where only the settings that are sensible using on stage are accessible.
The user interface offers an intuitive access for otherwise complex settings.
Advanced features such as automatic time-stretching, multiphase clocking and full morphing put the Quadigy in a category on its own.

Features at a glance

  • Quad 7-stage envelopes
    • Pre-delay
    • Hold
    • Attack
    • Punch
    • Decay
    • Sustain
    • Release
  • Continuous curve shape setting (A, D, R)
  • Inversion
  • Independent output level
  • Cycle capability with auto fit-to-clock
    • 5 internal clocks with tap tempo
    • External clock control
    • Multiply/divide and offset
    • Individual cycle ext. control
  • 32 presets with naming
  • External preset control via CV/Trig
  • Simultaneous 156-point CV matrix
  • Morphing on presets and CV Matrix
  • Multi-editing for polyphonic uses
  • Live mode for easier/safer control
  • Graphical display
  • Real-time envelope stages LED indication
  • Current state retained over power cycle
  • Easy firmware update via an audio file
  • Skiff-friendly and compact module

Firmware updates
V1.10
* LED dimming
* Screensaver
* Better rendering engine
* Manual gate for easy editing check
* Quad control enrichment with tempo and div/mult factor as needed
* Several user interface tweaks
V1.12 improves the curves dynamic rendering
V1.15 Presets and demo rearrange
V1.19 EG phase sequence LED fix
V1.22 Improved display for Global Time actions and duration settings in Cycle mode
V1.23 Fixes and subtle improvements
V1.25 = V1.23 for manufacturing purposes - no need to update from 1.23 !

Remember downloading the latest user manual !
