Dimensions
8 HP
38 mm deep
Current Draw
46 mA +12V
18 mA -12V
0 mA 5V
Price
$249 Price in €

This Module is discontinued.

Specs are approved by the manufacturer

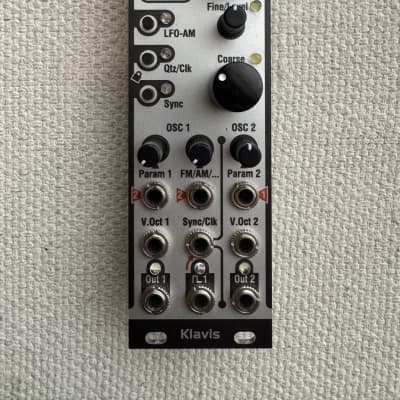

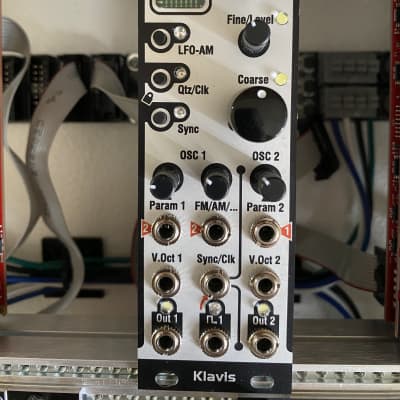

Dual VCO/LFO

This module is now replaced by the MKII version which retains ALL the features of the original
You can therefore watch all the videos and read all the comments of the first version knowing that you will find all in the upgraded MKII.
https://www.modulargrid.net/e/klavis-twin-waves-mkii


The driving idea behind the Twin waves voltage-controlled dual oscillator/LFO is to offer two interesting oscillators in a skiff-friendly and compact size. To achieve that challenge, we built the product’s architecture on the concept of pre-defined algorithms, where the most useful configurations and their matching parameter are ready to use.

  • Two oscillators independently set as VCO or LFO
  • Features in VCO mode:

    • V/Oct tracking over 10 octaves
    • Through zero and linear FM
    • Sub-octave output
    • Hard & soft synchronization
    • VCA control and CV algorithms selection
    • Quantizer with various scales
    • 20 algorithm-based synthesis to choose among:
      > Waveshaping
      > Phase modulation
      > Phase positioning of multiple waves
      > 5 stacked oscillators in tunable unison
      > Self-sync with phantom oscillator
      > Additive synthesis (7 waves)
      > Variable bit reduction (bit-crushing)
      > Ring modulator with its own 2nd oscillator
      > Noise with LPF, BPF, or resonant filter
  • Features in LFO mode:

    • Simultaneous signal and trigger outputs
    • Wave synchronization
    • Clock controlled rate with CV-controlled multiplier and divider
    • CV and knob control of output level
    • Algorithm based wave engine with a selection of:
      > Waveshaping
      > Phase modulation
      > Random levels and vectors (also Brownian)
      > Randomly spaced triggers and stretched waves
  • Display with contextual icons and instant reminder help text
  • LEDs indicating potentiometer vs. value matching, switch settings and output levels
  • Automatically saved settings for instant recall at power on
  • Firmware update via a simple audio file

Firmware 1.11 main additions
* Audio algo selection by CV
* Quantizer's base note settable + CV control
* Relative/Absolute modes in Self-Sync algorithms
* Enriched LED feedback

Firmware 1.13 main additions
* More quantizer scales
* Quantizer scales full name on the help screen

Firmware 1.16 main additions
* New CV mode: BZX FM - Bipolar thru-zero crossing FM

Firmware 1.24 main additions
* Any algorithm combination can be used freely in both oscillators
* VCA in audio mode
* Potentiometer locking capability to avoid detuning by mistake

Firmware 1.25 main additions
* Bug fix

Firmware 1.33 main additions
* New quantizer scales
* Upgrade of the Base Note handling
* Reset to factory settings capability
* Cosmetic Icon tweaks











>>> More videos on our Youtube channel


http://www.klavis.com/index.php/all-products/twin-waves
