Two Bits (Black panel)

Dual Logic Processor

Dual logic processor with chaining and CV functions

• Two dual-input logic processors
• 15 different functions; 30 when counting inverted

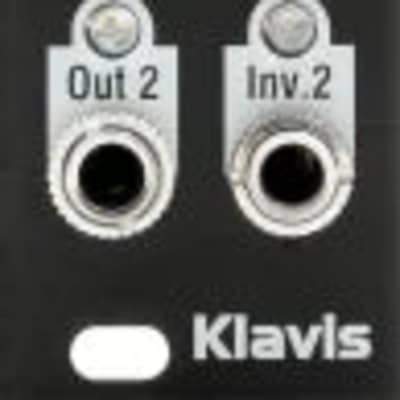

• Simultaneously available normal and inverted outputs (e.g. OR/NOR)
• LEDs on all outputs
• Chaining optionally inverted by dedicated button with LEDs
• Chaining does not waste any input or output; an additional virtual input is created in the second section
• Functions with duration, voltage, percentage, and ratio are user editable.
• User settings are stored automatically
• Random pass, voltage comparator, clock mult/div and delay line functions allow CV control
• White LEDs next to the pots confirm the matching of knob position and function
• The outputs can be Ored by simple shorting in a multiple
• Firmware upgradeable by playing an audio file
• Low consumption, skiff-friendly & compact module
• Complements Klavis’ Logica XT with a varied feature set

Functions offer features such as rising edge (rise) detection, falling edge (fall) detection, trigger delay, gate skip, gate to trigger and reverse, clock multiplication, clock division, set/reset, alternate right to pass, gate combiner with retriggering (Gater), majority vote, minus A AND B, and the usual AND, NAND, OR, NOR, XOR, XNOR, with up to four inputs when sections are combined/chained.
