Preset Morphing Mixer & Router Matrix

“At least now we know why they call it the Milky Way”

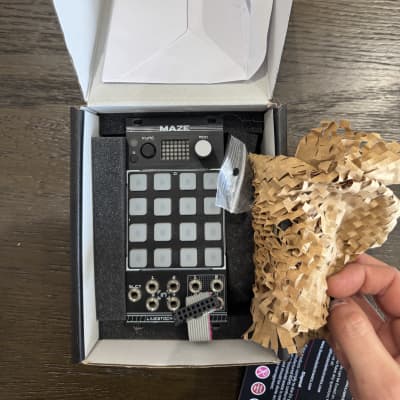

Maze is a routing and mixing matrix module. Create your own touchpad of patching presets! Each routing has been equipped with a VCA so it can be used for signal distribution and attenuation.

Morphing speed between presets can be changed and routings can be muted. Selecting presets is also possible via CV or triggers. This can even be done while setting routings, which allows for recording of routing creation!

The signal path is entirely analog and it is even possible to link Maze modules together to increase your matrix.

Note: This module is moddable using the Arduino IDE and modding manual (available after release).

  • ? mA +12V
  • ? mA -12V
  • ? mA 5V
  • 45 mm deep

This Module is a prototype or in a concept phase.

submitted Aug 27th 2016, 14:10 by LivestockElectronics | last Change Tuesday March 13, 20:02 by LivestockElectronics

3 Users are observing this
