two direct-coupled balanced modulator circuits

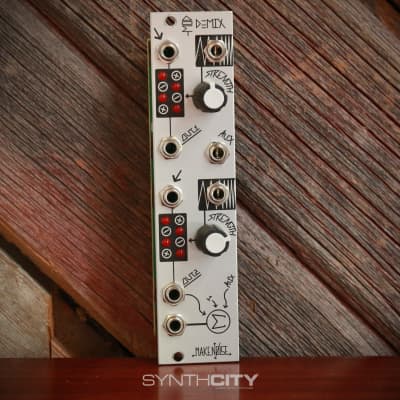

The modDemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently to process audio or control signals by means Ring Modulation, Multiplication, Voltage Controlled Polarization / Amplification / Mixing and more.

  • Unique balanced modulator circuit turns off around zero volts at the Carrier / Control Input, making the circuit behave well as a VCA

  • Attenuator at the Carrier / Control Input allows for setting the strength or level of the modulating signal

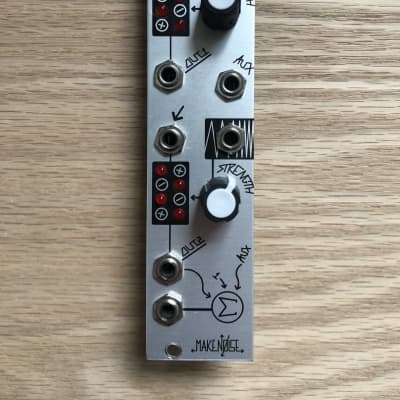

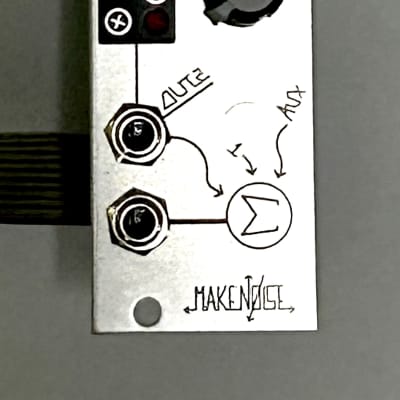

  • Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer

  • Auxiliary in allows for the stacking of multiple modDemix units to create larger mixes

  • Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod made

  • Max Blinkenlights, 8 LEDs packed into a small 6hp module

  • 30 mA +12V
  • 30 mA -12V
  • 0 mA 5V
  • 24 mm deep
  • Ø 4.16 (70 Votes) Average Rating

This Module is discontinued.
