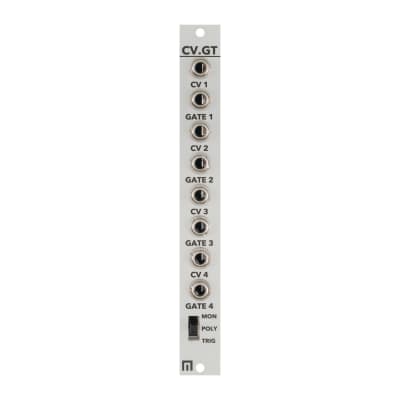

3HP CV/GATE EXPANDER MODULE FOR MALEKKO SYNC

CV/Gate is an expander module for Malekko Sync (connects via 6-pin cable included). Malekko SYNC sends incoming MIDI information or trigger information to CV/GATE expander outputs in 3 selectable modes (Mono, Poly and Drum Trigger Modes).

Features include:

4 sets of CV/Gate connections
3 way mode switch
Modes : Mono (MIDI channels 1-4 sent separately out cv/gate jacks 1-4), Poly (4 notes sent over channel 1 to the 4 cv/gate jacks), Drum Trigger (notes C1-G1 send gates out of the 8 jacks).
3hp

  • 19 mA +12V
  • 1 mA -12V
  • 0 mA 5V
  • Ø 3.00 (1 Votes) Average Rating

This Module is currently available.

$125
3 HP MIDI
