Dimensions
8 HP
21 mm deep
Current Draw
30 mA +12V
30 mA -12V
0 mA 5V
Price
$199 Price in €

This Module is discontinued.

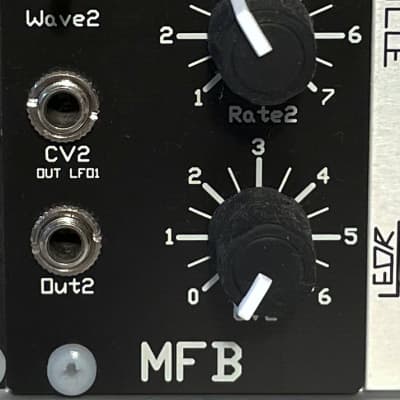

The DUAL LFO module houses two individual low frequency oscillators (LFOs) used mainly for modulation purposes. Each LFO section offers three selectable waveforms, CV-input with attenuator and a rate ranging from 10 seconds to approximately 100 Hz. By applying positive or negative voltage, this range can be widened with a factor up to 30, resulting in extreme slow or fast modulation rates.

Both LFOs offer individual inputs to reset the waveform, making it possible to synchronize to a sequencer with appropriate rate settings and separate reset-impulses.

LFO 1 offers triangle, saw tooth down and square waveforms, LFO 2 offers triangle, saw tooth up and sample & Hold. Output voltages are +/- 5 volts at maximum.

When not patched, the two CV-inputs are internally cross-wired, meaning that LFO 1 controls the speed of LFO 2 and vice versa with both attenuators being active to set modulation intensity.
