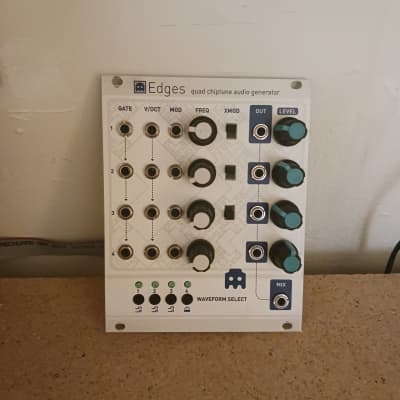

Quad chiptune audio generator

4 channels of soundchip-style sounds, with frequency CV control and Gate control (note on/off).

Channels 1, 2 and 3 are square/pulse (4 MHz clock rate) with 5 preset duty cycles. Extra modulation options are 1>2 sync, 1^2 ringmod and 1^3 ringmod. Channel 4 is either a NES-triangle or one of several flavors of pitched LSFR noise.

Bonus features: 8-step sequence recorder for each channel (individually clocked by the channel's GATE input) ; input CV quantizer ; DIY MIDI interface.


  • 25 mA +12V
  • 20 mA -12V
  • 45 mA 5V
  • 20 mm deep
  • Ø 4.25 (24 Votes) Average Rating

This Module is discontinued.

$339 submitted Apr 9th 2013, 14:06 by pichenettes | last Change Mar 1st, 19:51 by pichenettes
Specs are approved by the manufacturer
