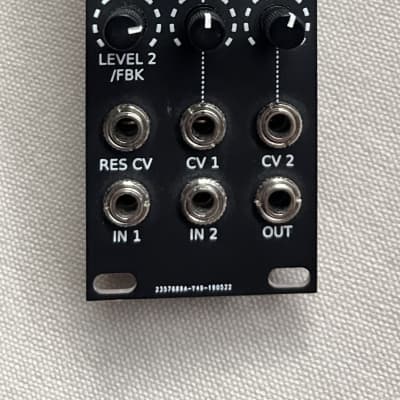

Micro version of System 80 Jove Roland Jupiter Filter

Plum Audio uJove is 8hp version of Jove - Multimode filter By System 80 that is inspired by the Roland Jupiter 6 filter.
uJove is exactly the same circuit as the original 14 hp Jove with the same amazing sound.
2 extra modifications have been added to increase the sound variety:
1. When no jack is plugged in to input 2 Positive feedback from the output to input 2 is activated. the feedback level can be controlled by LEVEL 2 knob.
2. Input 2 level knob can add 6dB of gain, 0dB on the middle, +6dB (clipping) when fully clockwise.
4 Leds of the original 14 hp Jove replaced by one RGB Led
Modes colours:
RED - LP24
ORANGE - LP12
BLUE - BP
GREEN - HP
available only as DIY project: https://pushermanproductions.com/product/plum-audio-ujove-pcb-and-8hp-aluminium-panel/

  • 28 mA +12V
  • 28 mA -12V
  • 0 mA 5V
  • 20 mm deep
  • Ø 5.00 (2 Votes) Average Rating

Module is available as a DIY project only.

This Module is currently available.

$250 Price in €
8 HP Filter
submitted Nov 6th 2018, 23:35 by shayshez | last Change Dec 30th 2018, 18:43 by shayshez
Specs are approved by the manufacturer

26 Users are observing this
