Polyphonic MIDI to CV converter

MIDI connected to Modular world

There are many great, functional MIDI tools and devices (DAWs, controllers, sequencers, keyboards etc.) and as many fantastic Eurorack modules. Poly seamlessly connects these worlds thanks to its multiple Ins and Outs.

The Interface

Poly equips you with all kinds of MIDI inputs. Connect your computer, smartphone or tablet to its USB port, your class compliant MIDI controllers via USB Host, and all the other devices via the classic MIDI DIN port.
A whole array of analog outputs give you the versatility to hook up loads of different types of modules. Eight rows of Gate, Pitch, Velocity, and Modulation let you freely control synth and drum voices.
MPE compatible

We are huge fans of MIDI and its vast possibilities. That's why we created Poly to be compatible with MPE standard (Multidimensional Polyphonic Expression). We believe that MPE is a perfect match for the modulars.
Three modes. Totally different possibilities.
Depending on what you want to achieve, there are three modes you can choose from: First, Next and Channel. Both First and Next modes are perfect for building your unique polyphonic synthesiser. In Channel mode a DIP switch on the back panel lets you choose between MIDI channels 1-8 or Notes C-G that are directed to corresponding CV voices.

First mode

Automatically detects inserted gates and activates rows of CVs starting from the first top available.
Next video

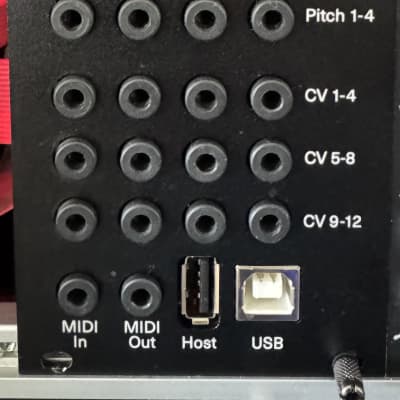

Ins & Outs

Ins:
MIDI DIN
USB A (5V)
USB B

Outs:
8x Gate (0-12V)
8x Pitch (0-12V, V/oct)
8x Velocity (0-12V)
8x Modulation (0-12V, selectable CC message 0-127 using DIP switch on the back panel)

http://polyend.com/poly/

  • 50 mA +12V
  • 0 mA -12V
  • 100 mA 5V
  • 25 mm deep
  • Ø 3.33 (3 Votes) Average Rating

This Module is currently available.

$399 submitted Jan 20th 2017, 05:05 by SOPiiAC | last Change Aug 25th, 07:22 by FG-Modular
