Dimensions
10 HP
35 mm deep

Module is a 1U tile.

Current Draw
10 mA +12V
7 mA -12V
0 mA 5V
Price
$81 Price in €

This Module is currently available.

Specs are approved by the manufacturer

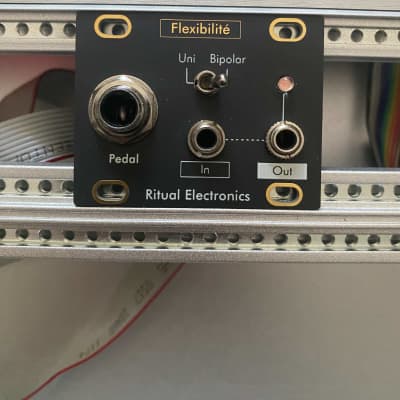

Flexibilite is an expression pedal adaptor for Eurorack

Your third hand is your foot.

Flexibilite is a fairly simple module. Plug an expression pedal
into it and use your foot to control your modules. By default it
generates a 0-5V signal (unipolar) or a -5/+5V signal (bipolar),
attenuated by the foot pedal.

Flexibilité has an input for external signals, so it can be used
as a volume pedal on audio or attenuator/attenuverter on CV
signals.

For when you need this extra hand!

Controls:
· Expression pedal input
· External signal input
· Switch for Unipolar (0-5V) / Bipolar (-5/+5V)

Technical characteristics:
· Buffered input & output
· Reverse polarity switch on the back of the
module for compatibility with most expression
pedals

Current consumption:
+12V: 10mA | -12V: 7mA | +5V: 0mA

Size:
10HP | 35mm deep

Available with either Intellijel 1U or Pulp Logic 1U Tile faceplate.

https://www.ritualelectronics.com/products/1u-flexibilite
