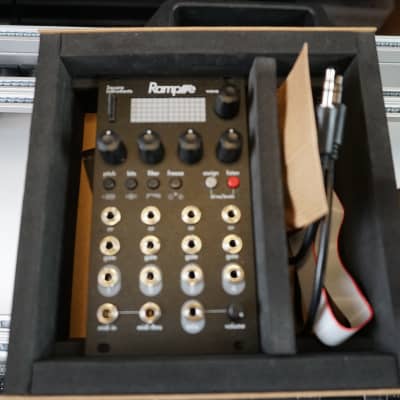

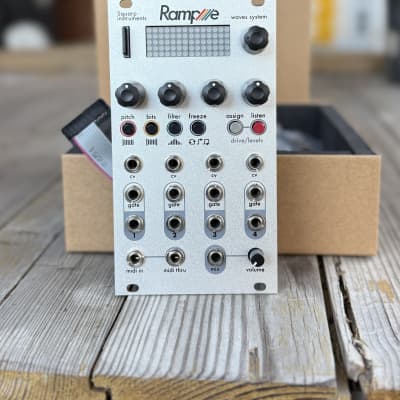

Eurorack 4-voice sample player & audio processor

Workflow
● 4-voice sample player
● plays .wav files, organized as 'kits' inside the microSD card
● up to 2600 kits (A0 to Z99)
● no sample duration limit (can even plays several hours files)
● each voice has a 5-effect rack: bitcrusher, pitch (6-pole interpolator), filter, freeze, drive
● ... and more parameters: level, sample start point, length, attack/decay and run mode
● mute groups for each sample
● multilayers: each voice can be “multi-sampled” with up to 12 samples
● everything is controllable with the CV inputs or via midi in
● microSD preloaded with artists kits
● easy to create and import samples from the micro SD card

Inputs
● 4 Gate (for sample trig)
● 4 assignable CV to modulate effects parameters [-5V to +5V]
● 1 midi (control/sequence Rample, jack to din adapter included)

Outputs
● 4 dedicated audio outputs (mono, DC-coupled = can play CV signals) [-5V to +5V]
● 1 audio mix output (unplugged audio outputs are normalled to "mix" with volume control)
● 1 midi thru (for Rample chaining, jack to jack cable included)

User interface
● 4 high-quality potentiometers for playing with effects and parameters
● 6 push buttons
● menu clickable encoder
● red matrix screen
● microSD card slot to read your kits and upgrade the OS (SD card included)

https://squarp.net/rample

  • 190 mA +12V
  • 40 mA -12V
  • 0 mA 5V
  • 25 mm deep
  • Ø 4.50 (4 Votes) Average Rating

This Module is currently available.

$269 Price in €
14 HP SamplingDrum
